Door hinge
VB40-95
- Product ID：Door hinge
- Phone: +86-13708974157
- Tel: +86-510-82604566
- Email: zolota@zolota.com
- Time: 2023-12-20 16:40
- FEEDBACK
PRODUCT FEATURES

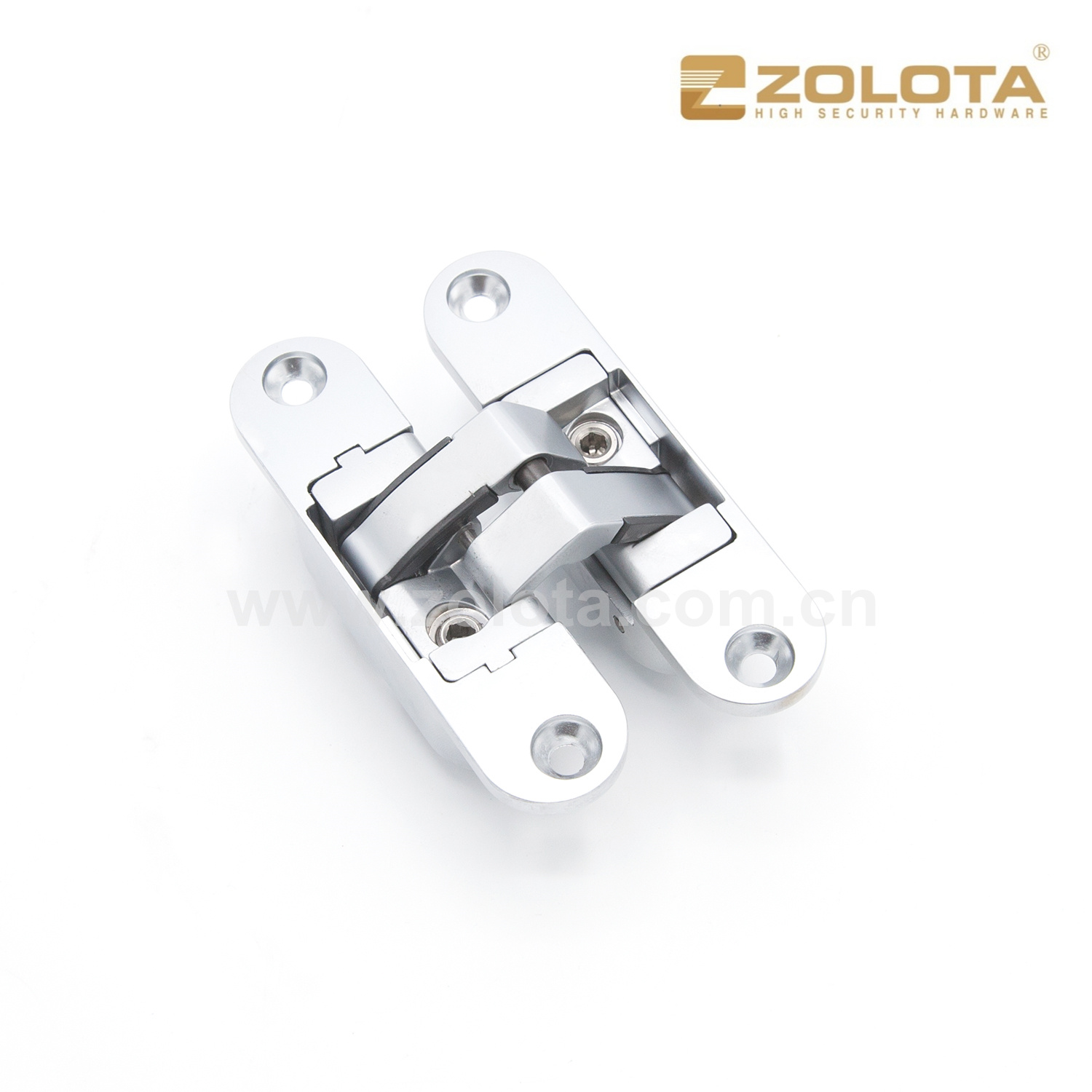

3D-Adjustable Concealed Hinge
For wooden doors For flush doors Concealed installationWith 3D adjustable: vertical ±1mm, depth ±1mm and horizontal ±1mm
Made of special zinc alloy
TECHNICAL DATA
Max. door weight with 2 hinges 40kgMin. door thickness 30mm
Max. door width 1000mm
