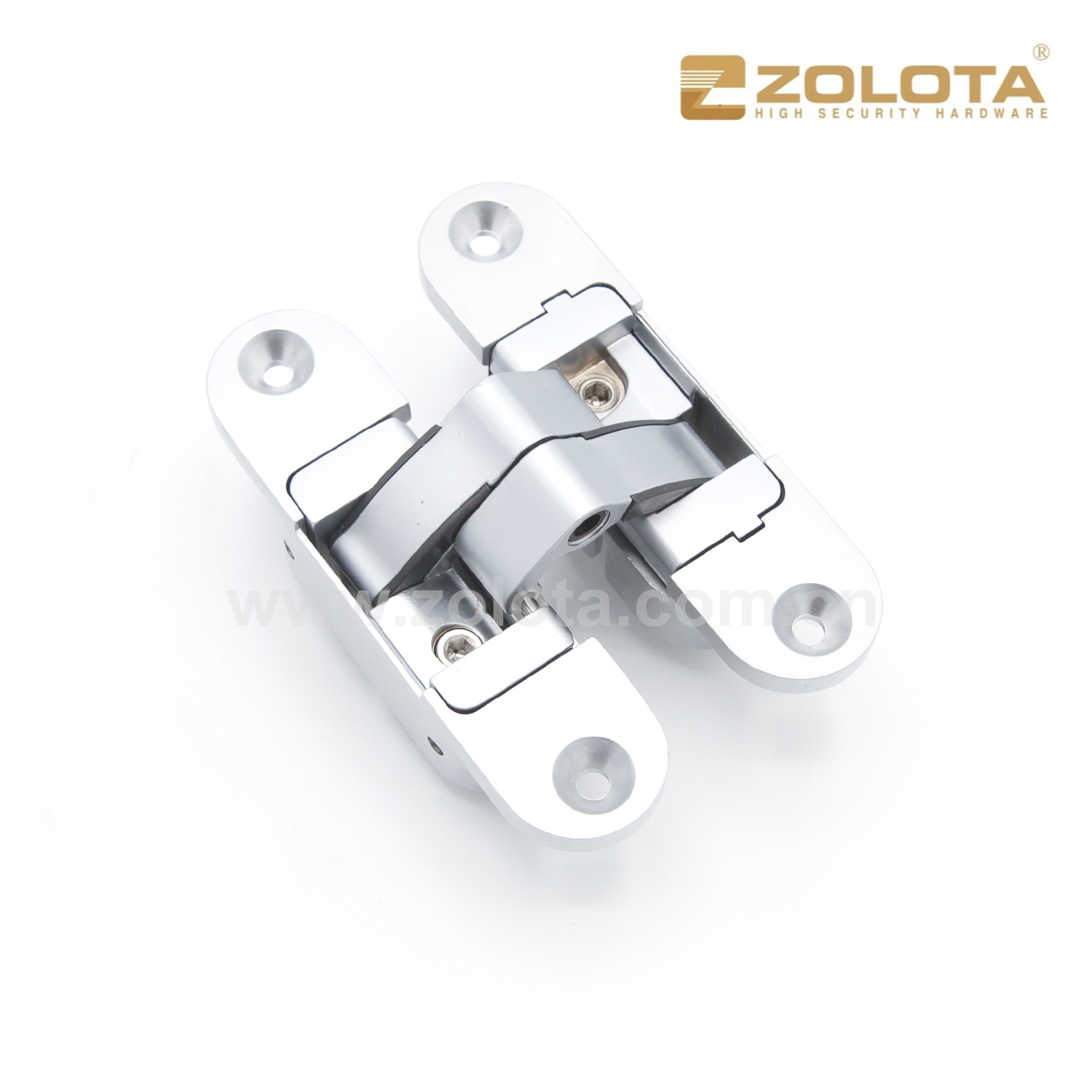

Door hinge

VB60-111

  • Product ID：Door hinge
  • Phone: +86-13708974157
  • Tel: +86-510-82604566
  • Email: zolota@zolota.com
  • Time: 2023-12-20 16:39
  • FEEDBACK

PRODUCT FEATURES

3D-Adjustable Concealed Hinge

For wooden doors For flush doors Concealed installation
With 3D adjustable: vertical ±1.5mm, depth ±1mm and horizontal ±1mm
Made of special zinc alloy

TECHNICAL DATA

Max. door weight with 2 hinges  60kg
Min. door thickness 40mm
Max. door width 1000mm
